What good is a dungeon with no monsters to bash? This chapter will focus on placing the enemies throughout the dungeon, and setting them up to be attacked (the actual attacking part we’ll save for next time).

Since we set up entities to be stored in the GameMap from the beginning, we’re already well-positioned to add enemies to our dungeon. The map has direct access to the entities, and we can preserve which entities are on which floors fairly easily when we add that feature later.

Let’s start by giving our entities a few more attributes they’ll need. Modify game/entity.py:

from future import annotations

from typing import Optional, Tuple

if TYPE_CHECKING: import game.game_map

class Entity: “”” A generic object to represent players, enemies, items, etc. “””

gamemap: game.game_map.GameMap

def __init__(
    self,
    gamemap: Optional[game.game_map.GameMap] = None,
    x: int = 0,
    y: int = 0,
    char: str = "?",
    color: Tuple[int, int, int] = (255, 255, 255), +       name: str = "<Unnamed>", +       blocks_movement: bool = False,
):
    self.x = x
    self.y = y
    self.char = char
    self.color = color +       self.name = name +       self.blocks_movement = blocks_movement
    if gamemap:
        # If gamemap isn't provided now then it will be set later.
        self.gamemap = gamemap
        gamemap.entities.add(self)

from __future__ import annotations

from typing import Optional, Tuple

if TYPE_CHECKING:
    import game.game_map


class Entity:
    """
    A generic object to represent players, enemies, items, etc.
    """

    gamemap: game.game_map.GameMap

    def __init__(
        self,
        gamemap: Optional[game.game_map.GameMap] = None,
        x: int = 0,
        y: int = 0,
        char: str = "?",
        color: Tuple[int, int, int] = (255, 255, 255),
        name: str = "<Unnamed>",
        blocks_movement: bool = False,
    ):
        self.x = x
        self.y = y
        self.char = char
        self.color = color
        self.name = name
        self.blocks_movement = blocks_movement
        if gamemap:
            # If gamemap isn't provided now then it will be set later.
            self.gamemap = gamemap
            gamemap.entities.add(self)

We’ve added two new attributes to Entity: name and blocks_movement. name is straightforward: it’s what the Entity is called. blocks_movement describes whether or not this Entity can be moved over or not. Enemies will have blocks_movement set to True, while in the future, things like consumable items and equipment will be set to False.

Now let’s update our player creation in main.py to use these new attributes:

tileset = tcod.tileset.load_tilesheet("data/dejavu10x10_gs_tc.png", 32, 8, tcod.tileset.CHARMAP_TCOD)

    tileset = tcod.tileset.load_tilesheet("data/dejavu10x10_gs_tc.png", 32, 8, tcod.tileset.CHARMAP_TCOD)

    player = Entity(x=0, y=0, char="@", color=(255, 255, 255))
    player = Entity(x=0, y=0, char="@", color=(255, 255, 255), name="Player", blocks_movement=True)
    engine = Engine(player=player)

Now, moving on to actually placing monsters in our dungeon. Our logic will be simple enough: For each room that’s created in our dungeon, we’ll place a random number of enemies, between 0 and a maximum (2 for now). We’ll make it so that there’s an 80% chance of spawning an Orc (a weaker enemy) and a 20% chance of it being a Troll (a stronger enemy).

In order to specify the maximum number of monsters that can be spawned into a room, let’s create a new variable, max_monsters_per_room, and place it in main.py. We’ll also modify our call to generate_dungeon to pass this new variable in.

...
max_rooms = 30

    ...
    max_rooms = 30

    max_monsters_per_room = 2

    tileset = tcod.tileset.load_tilesheet(
        "data/dejavu10x10_gs_tc.png", 32, 8, tcod.tileset.CHARMAP_TCOD
    )

    player = Entity(x=0, y=0, char="@", color=(255, 255, 255), name="Player", blocks_movement=True)
    engine = Engine(player=player)

    engine.game_map = generate_dungeon(
        max_rooms=max_rooms,
        room_min_size=room_min_size,
        room_max_size=room_max_size,
        map_width=map_width,
        map_height=map_height,
        max_monsters_per_room=max_monsters_per_room,
        engine=engine,
    )
    ...

Now we’ll need to modify the definition of generate_dungeon to take this new variable:

def generate_dungeon( max_rooms: int, room_min_size: int, room_max_size: int, map_width: int, map_height: int,

def generate_dungeon(
    max_rooms: int,
    room_min_size: int,
    room_max_size: int,
    map_width: int,
    map_height: int,
    max_monsters_per_room: int,
    engine: game.engine.Engine,
) -> game.game_map.GameMap:
    """Generate a new dungeon map."""
    player = engine.player
    dungeon = GameMap(engine, map_width, map_height)

Now let’s create a function to place the entities. Add this to game/procgen.py:

from future import annotations

from typing import TYPE_CHECKING, Iterator, List, Tuple import random

import tcod

+from game.entity import Entity from game.game_map import GameMap from game.tiles import floor

if TYPE_CHECKING: import game.engine

class RectangularRoom: …

+def place_entities(

def tunnel_between(start: Tuple[int, int], end: Tuple[int, int]) -> Iterator[Tuple[int, int]]: …

from __future__ import annotations

from typing import TYPE_CHECKING, Iterator, List, Tuple
import random

import tcod

from game.entity import Entity
from game.game_map import GameMap
from game.tiles import floor

if TYPE_CHECKING:
    import game.engine


class RectangularRoom:
    ...


def place_entities(
    room: RectangularRoom,
    dungeon: game.game_map.GameMap,
    maximum_monsters: int,
) -> None:
    number_of_monsters = random.randint(0, maximum_monsters)

    for _ in range(number_of_monsters):
        x = random.randint(room.x1 + 1, room.x2 - 1)
        y = random.randint(room.y1 + 1, room.y2 - 1)

        if not any(entity.x == x and entity.y == y for entity in dungeon.entities):
            if random.random() < 0.8:
                Entity(gamemap=dungeon, x=x, y=y, char="o", color=(63, 127, 63), name="Orc", blocks_movement=True)
            else:
                Entity(gamemap=dungeon, x=x, y=y, char="T", color=(0, 127, 0), name="Troll", blocks_movement=True)


def tunnel_between(start: Tuple[int, int], end: Tuple[int, int]) -> Iterator[Tuple[int, int]]:
    ...

This function takes a random number between 0 and the provided maximum (2, in this case). It then iterates, selecting random x and y coordinates within the room. We check to make sure there’s no other entity at that location before creating either an Orc (80% chance) or a Troll (20% chance). Notice how we pass the dungeon as the gamemap parameter when creating entities - this automatically adds them to the map’s entity set.

Now let’s call this function after creating each room:

    else:  # All rooms after the first.
        # Dig out a tunnel between this room and the previous one.
        for x, y in tunnel_between(rooms[-1].center, new_room.center):
            dungeon.tiles[x, y] = floor

return dungeon

        else:  # All rooms after the first.
            # Dig out a tunnel between this room and the previous one.
            for x, y in tunnel_between(rooms[-1].center, new_room.center):
                dungeon.tiles[x, y] = floor

        place_entities(new_room, dungeon, max_monsters_per_room)

        # Finally, append the new room to the list.
        rooms.append(new_room)

    return dungeon

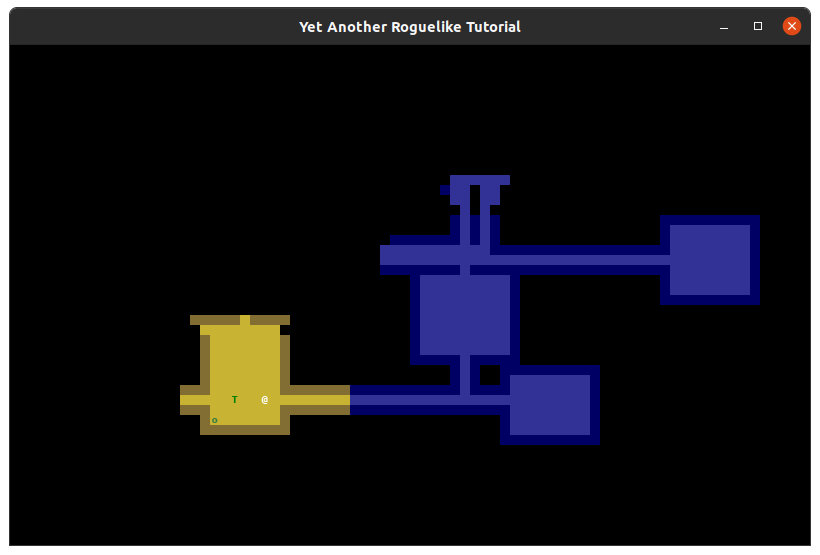

With that, your dungeon should now be populated with enemies.

Font File

They’re… not exactly intimidating, are they? In fact, they don’t really do much of anything right now. But that’s okay, we’ll work on that.

The first step towards making our monsters scarier is making them stand their ground… literally! The player can currently walk over (or under) the enemies by simply moving into the same space. Let’s fix that, and ensure that when the player tries to move towards an enemy, we attack instead.

We already have a get_blocking_entity_at_location method from Part 2. Let’s add a convenience alias for it in game/game_map.py:

def get_blocking_entity_at_location(
    self,
    location_x: int,
    location_y: int,
) -> Optional[game.entity.Entity]:
    for entity in self.entities: -           if entity.x == location_x and entity.y == location_y: +           if entity.blocks_movement and entity.x == location_x and entity.y == location_y:
            return entity

    return None

    def get_blocking_entity_at_location(
        self,
        location_x: int,
        location_y: int,
    ) -> Optional[game.entity.Entity]:
        for entity in self.entities:
            if entity.x == location_x and entity.y == location_y:
            if entity.blocks_movement and entity.x == location_x and entity.y == location_y:
                return entity

        return None

    def get_blocking_entity_at(self, x: int, y: int) -> Optional[game.entity.Entity]:
        """Alias for get_blocking_entity_at_location"""
        return self.get_blocking_entity_at_location(x, y)

We’ve also updated the check to consider blocks_movement, so only entities that actually block movement will be returned.

Now let’s enhance our action system to handle attacking. We’ll modify game/actions.py to add some useful properties to ActionWithDirection and create our attack actions:

from future import annotations

-from typing import TYPE_CHECKING +from typing import TYPE_CHECKING, Optional

if TYPE_CHECKING: import game.engine import game.entity

class Action: …

class EscapeAction(Action): def perform(self) -> None: raise SystemExit()

+class WaitAction(Action):

class ActionWithDirection(Action): def init(self, entity: game.entity.Entity, dx: int, dy: int): super().init(entity)

    self.dx = dx
    self.dy = dy

def perform(self) -> None:
    raise NotImplementedError()

+class MeleeAction(ActionWithDirection):

class MovementAction(ActionWithDirection): def perform(self) -> None:

+class BumpAction(ActionWithDirection):

from __future__ import annotations

from typing import TYPE_CHECKING
from typing import TYPE_CHECKING, Optional

if TYPE_CHECKING:
    import game.engine
    import game.entity


class Action:
    ...


class EscapeAction(Action):
    def perform(self) -> None:
        raise SystemExit()


class WaitAction(Action):
    def perform(self) -> None:
        pass


class ActionWithDirection(Action):
    def __init__(self, entity: game.entity.Entity, dx: int, dy: int):
        super().__init__(entity)

        self.dx = dx
        self.dy = dy

    @property
    def dest_xy(self) -> tuple[int, int]:
        """Returns this actions destination."""
        return self.entity.x + self.dx, self.entity.y + self.dy

    @property
    def blocking_entity(self) -> Optional[game.entity.Entity]:
        """Return the blocking entity at this actions destination."""
        return self.engine.game_map.get_blocking_entity_at(*self.dest_xy)

    @property
    def target_actor(self) -> Optional[game.entity.Entity]:
        """Return the actor at this actions destination."""
        return self.engine.game_map.get_blocking_entity_at(*self.dest_xy)

    def perform(self) -> None:
        raise NotImplementedError()


class MeleeAction(ActionWithDirection):
    def perform(self) -> None:
        target = self.blocking_entity
        if not target:
            return  # No entity to attack.

        print(f"You kick the {target.name}, much to its annoyance!")


class MovementAction(ActionWithDirection):
    def perform(self) -> None:
        dest_x = self.entity.x + self.dx
        dest_y = self.entity.y + self.dy
        dest_x, dest_y = self.dest_xy

        if not self.engine.game_map.in_bounds(dest_x, dest_y):
            return  # Destination is out of bounds.
        if not self.engine.game_map.tiles["walkable"][dest_x, dest_y]:
            return  # Destination is blocked by a tile.
        if self.engine.game_map.get_blocking_entity_at_location(dest_x, dest_y):
        if self.engine.game_map.get_blocking_entity_at(dest_x, dest_y):
            return  # Destination is blocked by an entity.

        self.entity.move(self.dx, self.dy)


class BumpAction(ActionWithDirection):
    def perform(self) -> None:
        if self.target_actor:
            return MeleeAction(self.entity, self.dx, self.dy).perform()
        else:
            return MovementAction(self.entity, self.dx, self.dy).perform()

We’ve added properties to make our action code cleaner - dest_xy computes the destination coordinates, and blocking_entity/target_actor check what’s at that location. BumpAction determines whether to move or attack based on whether there’s a target at the destination.

Now let’s update our input handler to use BumpAction instead of MovementAction:

import tcod.event

-from game.actions import Action, EscapeAction, MovementAction +from game.actions import Action, BumpAction, EscapeAction, WaitAction

if TYPE_CHECKING: import game.engine

…

def ev_keydown(self, event: tcod.event.KeyDown) -> Optional[ActionOrHandler]:
    action: Optional[Action] = None

    key = event.sym +       modifiers = event.mod

    player = self.engine.player

    if key in MOVE_KEYS:
        dx, dy = MOVE_KEYS[key] -           action = MovementAction(player, dx, dy) +           action = BumpAction(player, dx, dy)
    elif key == tcod.event.KeySym.ESCAPE:
        action = EscapeAction(player) +       elif key == tcod.event.KeySym.PERIOD and modifiers & (tcod.event.Modifier.LSHIFT | tcod.event.Modifier.RSHIFT): +           # Wait if user presses '>' (shift + period) +           action = WaitAction(player)

    # No valid key was pressed
    return action

import tcod.event

from game.actions import Action, EscapeAction, MovementAction
from game.actions import Action, BumpAction, EscapeAction, WaitAction

if TYPE_CHECKING:
    import game.engine

...

    def ev_keydown(self, event: tcod.event.KeyDown) -> Optional[ActionOrHandler]:
        action: Optional[Action] = None

        key = event.sym
        modifiers = event.mod

        player = self.engine.player

        if key in MOVE_KEYS:
            dx, dy = MOVE_KEYS[key]
            action = MovementAction(player, dx, dy)
            action = BumpAction(player, dx, dy)
        elif key == tcod.event.KeySym.ESCAPE:
            action = EscapeAction(player)
        elif key == tcod.event.KeySym.PERIOD and modifiers & (tcod.event.Modifier.LSHIFT | tcod.event.Modifier.RSHIFT):
            # Wait if user presses '>' (shift + period)
            action = WaitAction(player)

        # No valid key was pressed
        return action

We’ve also added a WaitAction that triggers when the player presses shift+period (‘>’), which will be useful for letting enemies take their turn without the player moving.

Run the project now. At this point, you shouldn’t be able to move over the enemies, and you should get a message in the terminal, indicating that you’re attacking the enemy (albeit not for any damage).

Before we wrap this part up, let’s set ourselves up to allow for enemy turns as well. They won’t actually be doing anything at the moment, we’ll just get a message in the terminal that indicates something is happening.

Add these small modifications to game/engine.py:

class Engine: game_map: game.game_map.GameMap

def __init__(self, player: Entity):
    self.player = player

def update_fov(self) -> None:
    """Recompute the visible area based on the players point of view."""
    self.game_map.visible[:] = tcod.map.compute_fov(
        self.game_map.tiles["transparent"],
        (self.player.x, self.player.y),
        radius=8,
    )
    # If a tile is "visible" it should be added to "explored".
    self.game_map.explored |= self.game_map.visible

def render(self, console: tcod.console.Console) -> None:
    self.game_map.render(console)

class Engine:
    game_map: game.game_map.GameMap

    def __init__(self, player: Entity):
        self.player = player

    def update_fov(self) -> None:
        """Recompute the visible area based on the players point of view."""
        self.game_map.visible[:] = tcod.map.compute_fov(
            self.game_map.tiles["transparent"],
            (self.player.x, self.player.y),
            radius=8,
        )
        # If a tile is "visible" it should be added to "explored".
        self.game_map.explored |= self.game_map.visible

    def handle_enemy_turns(self) -> None:
        for entity in set(self.game_map.entities) - {self.player}:
            print(f"The {entity.name} wonders when it will get to take a real turn.")

    def render(self, console: tcod.console.Console) -> None:
        self.game_map.render(console)

Now we need to call this after the player takes an action. In game/input_handlers.py:

def handle_action(self, action: Optional[Action]) -> bool:
    """Handle actions returned from event methods.

    Returns True if the action will advance a turn.
    """
    if action is None:
        return False

    action.perform()

    def handle_action(self, action: Optional[Action]) -> bool:
        """Handle actions returned from event methods.

        Returns True if the action will advance a turn.
        """
        if action is None:
            return False

        action.perform()

        self.engine.handle_enemy_turns()
        self.engine.update_fov()  # Update the FOV before the players next action.
        return True

The handle_enemy_turns function loops through each entity (minus the player) and prints out a message for them. In the next part, we’ll replace this with some code that will allow those entities to take real turns.

We call handle_enemy_turns right after action.perform, so that the enemies move right after the player. Other roguelike games have more complex timing mechanisms for when entities take their turns, but our tutorial will stick with probably the simplest method of all: the player moves, then all the enemies move.

That’s all for this chapter. Next time, we’ll look at moving the enemies around on their turns, and doing some real damage to both the enemies and the player.

If you want to see the code so far in its entirety, click here.

Click here to move on to the next part of this tutorial.
